Jeanneau Sun Odyssey 410


Overview

The 410 has received plaudits Worldwide for its forward thinking concept, marrying a performance hull with many design features never seen in the Cruising World. Highlights of the model include:

  • inclined side-decks for "no step" movement around deck
  • aggressive chine carried to the extremes of the bow for stability, speed and smooth sea motion

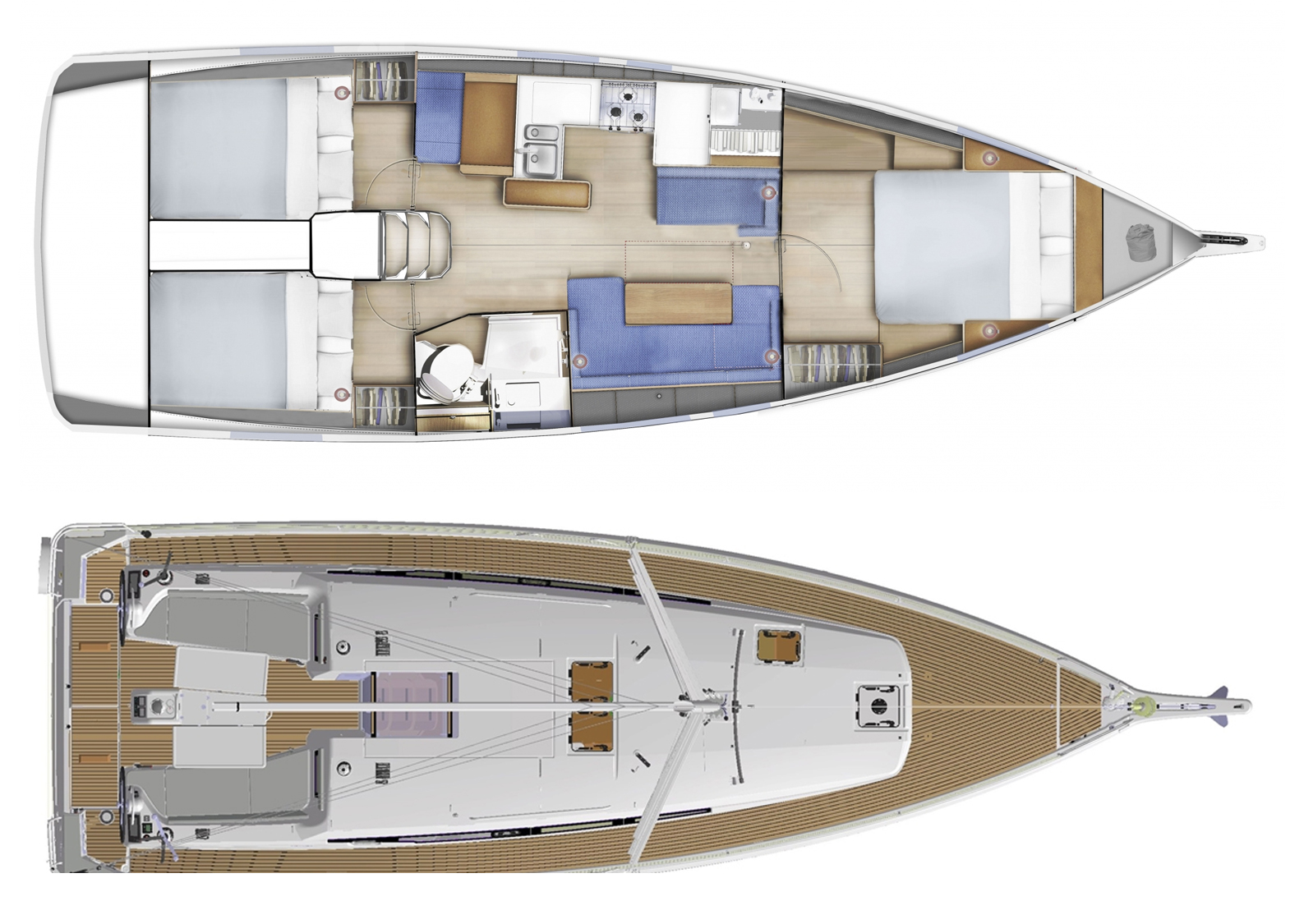

  • a completely rectangular 2m x 1.5m forward berth for unrivalled comfort in her category
Offering multiple internal lay-outs configurations, as well as a hydraulic Swing keel option, this 8th generation Sun Odyssey has proven to be a real leader in its Class.





Specifications

  • Overall length: 12.35m / 40’6’’
  • Overall Length with bowsprit: 12.95m / 42’5’’
  • Hull length: 11.99m / 39’4’’*
  • Waterline length: 11.47m / 37’7’’
  • Beam: 3.99m / 13’1’’
  • Displacement light load with deep draft keel: 7,784 kg / 17,161 lbs
  • Standard keel draft: 2.25m / 7’4’’
  • Standard keel weight: 2,003 kg / 4,416 lbs
  • Shoal keel draft: 1.60m / 5’2’’
  • Shoal keel weight: 2,326 kg / 5,128 lbs
  • Lifting keel draft: 1.37 - 2.97m /4’5" - 9’8’’
  • Lifting keel weight: 1,807 kg / 3,984 lbs
  • Fuel capacity: 200L / 53 US gal
  • Water capacity: 530L / 140 US gal
  • Fridge capacity: 190L / 50 US gal
  • Holding tank capacity: 80L / 21 US gal
  • Standard mainsail horizontally-cut in High Strength polyester: 42.70 m² / 459 sq ft
  • Furling 110 % genoa in High Strength polyester: 34.30 m² / 369 sq ft
  • CE category 2 cabins layout: A6 / B7 / C9 / D9
  • CE category 3 cabins layout: A8 / B10 / C10 / D10
  • Architect / Designer: Marc Lombard Yacht Design / Piaton Bercault / Jeanneau Design
